Credit: Gavin Taylor for the original version of these notes.

1 Big-O Notation

What is a Data Structure?

Most of you carry around (the same) large black backpack all day. Think about what's in there, and where it is. Your decisions on what to put in there and where to put it all were governed by a few tradeoffs. Are commonly-used things easy to reach? Is the backpack small and easy to carry? Is it easy to find everything in there? Do you really need all that stuff every day?

Organizing data in a computer is no different; we have to be able to make decisions on how to store data based on understanding these tradeoffs. How much space does this organization take? Is the operation I want to perform fast? Can another programmer understand what the heck is going on here?

As a result, we have to start with intelligent ways of discussing these tradeoffs. Which means, we have to start with...

Algorithm analysis

In order to measure how well we store our data, we have to measure the effect that data storage has on our algorithms. So, how do we know our algorithm is any good? First off, because it works - it computes what we want it to compute, for all (or nearly all) cases. At some level getting working algorithms is called programming, and at another it's an abstract formal topic called program correctness. But what we mostly will talk about here is if we have two algorithms, which is better?

So, why should we prefer one algorithm over another? As we talked about, this could be speed, memory usage, or ease of implementation. All three are important, but we're going to focus on the first two in this course, because they are the easiest to measure. We'll start off talking about time because it is easier to explain - once you get that, the same applies to space. Note that sometimes (often) space is the bigger concern.

We want the algorithm that takes less time. As soon as we talk about "more" or "less", we need to count something. What should we count? Seconds (or minutes) seems an obvious choice, but that's problematic. Real time varies upon conditions (like the computer, or the specific implementation, or what else the computer is working on).

For example, here are two algorithms for computing

1
2
3
4
5
6
7
8
9
10
11
12
13
14

public double f_alg1(double x, int n) {
 // Compute x^8
 double x8 = 1.0;
 for(int i = 0; i < 8; i++)
    x8 = x8*x;
 double s = 0.0;
 for(int k = 1; k <= n; k++) {
    double f = 1.0;
    for(int i = 1; i <= k; i++)
      f = f*i;         // Compute k!
    s = s + x8/f;      // Add next term
 }
 return s;
}

1
2
3
4
5
6
7
8
9
10
11
12
13

public double f_alg2(double x, int n) {
 // Compute x^8
 double x2 = x*x;
 double x4 = x2*x2;
 double x8 = x4*x4;
 double s = 0.0;
 double f = 1.0;
 for(int k = 1; k <= n; k++) {
    f = f*k;           // Compute k!
    s = s + x8/f;      // Add next term
 }
 return s;
}

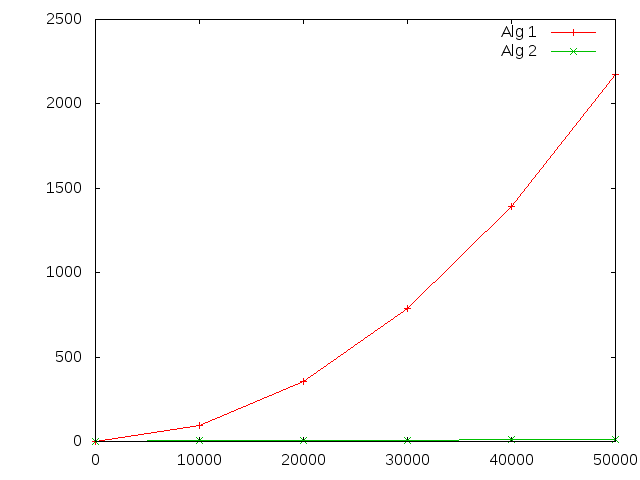

We can use Java's System.currentTimeMillis() which returns the current clock time in milliseconds to time these two functions. Here are the running times for various values of n:

Both get slower as n increases, but algorithm 1 gets worse faster. Why does algorithm 1 suck?

What happens if we run one of them on a different computer? Will we get the same times? Probably not-- processor speed, operating system, memory, and a host of other things impact how much time it takes to execute a task.

What we need, then, is a machine- and scenario-independent way to describe how much work it takes to run an algorithm. One thing that doesn't change from computer to computer is the number of basic steps in the algorithm (this is a big handwave, but generally true), so lets measure steps.

We are going to vaguely describe a "step" as a primitive operation, such as:

• assignment
• method calls
• arithmetic operation
• comparison
• array index
• dereferencing a pointer
• returning

It is important to note that this has a great degree of flexibility: one person's basic step is another person's multiple steps. To an electrical engineer, taking the not of a boolean is one step because it involves one bit. Adding two 32-bit numbers is 32 (or more!) steps. We won't be quite so anal.

So, when we determine how long an algorithm takes, we count the number of steps. More steps == more work == slower algorithm, regardless of the machine.

What does the following code do, and how many steps does it take?

1
2
3
4
5
6
7

max = a[0];          // 2 steps: array index and assignment
i =1                 // 1 step: assignment
while (i < n)        // n comparisons, plus (n-1) times through the loop
  if (a[i] > max)    // 2: array and comparison
        max = a[i]   // 2, but it doesn't always happen!
  i++                // 2: i=i+1;
return max;          // 1: we'll count calls and returns as 1.

This gives us: \(2 + 1 + n + (n - 1)\cdot(4 \text{ or } 6) + 1\).

Now, we're not quite done. In the code above, there are circumstances under which it will run faster than others. For example, if the array is in descending order, the code within the if statement is never run at all. If it is in ascending order, it will be run every time through the loop. We call these "best case" and "worst case" run times. We can also consider and talk about the "average" run time.

The best case is usually way too optimistic (most algorithms have best case times that are far away from average). Average case is often hard, because we need probabilistic analysis. In many cases, a worst case bound is a good estimate. That way we can always say, "no matter what, this program will take no more than this many steps." In the formula above, this means the \((4\text{ or }6)\) part just becomes 6.

Comparing algorithms with bounds

In the program above, the number of steps it takes depends on the size of the array, the n. What we really want is a function that takes the size of the array as input, and returns the number of steps as the output. Note that is what we developed above.

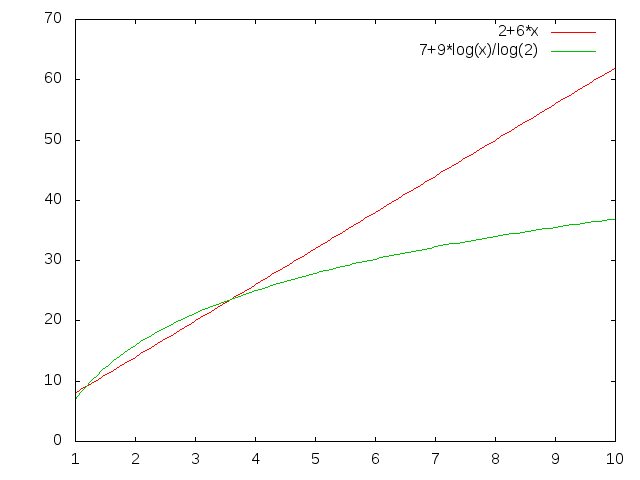

So when we're comparing algorithms, we don't compare numbers, but functions. But how do we compare functions? Which function below is "bigger"?

Well, sometimes one, and sometimes the other. So what we'll do is talk about one function dominating the other. We'll say that one function dominates another if it is always bigger than the other for every x value (for example \(f(x) = x^2\) dominates \(f(x)=-x^2\)). Neither of the functions in the graph above dominates the other.

One function can dominate another in a particular range as well. \(f(x)=1\) dominates \(f(x) = x^2\) in the range \([0;1]\).

Now, when input sizes are small, everything is fast. Differences in run time are most relevant when there is a lot of data to process. So, we colloquially ask "When n is large, does one dominate the other?" Mathematically, we ask if there exists an \(n_0\geq 1\) such that for all \(n\ge n_0\), \(f(n) \gt g(n)\) (or \(g(n) \gt f(n)\)).

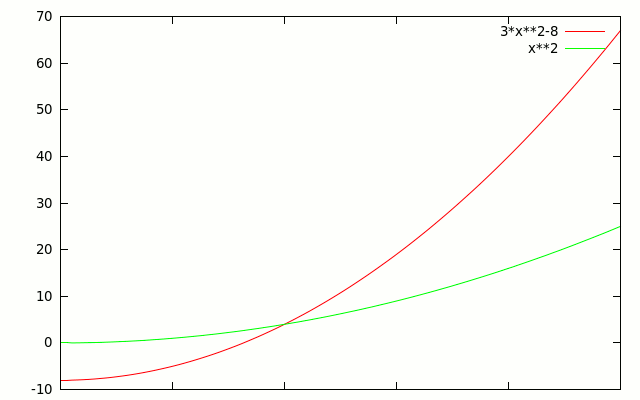

In this graph, \(f(x)=3x^2-8\) dominates \(f(x)=x^2\) everywhere to the right of \(x=2\). So \(n_0=2\) - I like to call this the "crossover point".

How can we tell if one will dominate the other for large n?

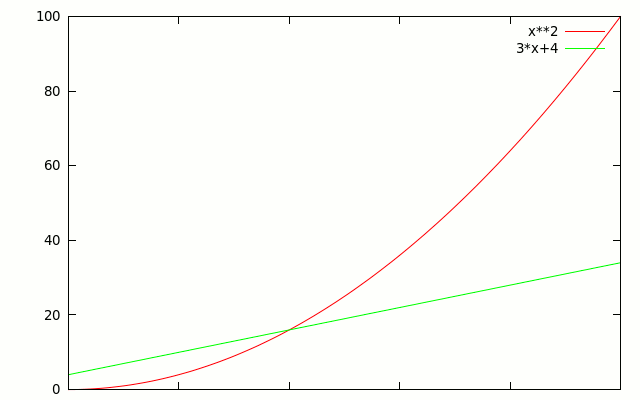

It turns out it's really easy. It is all about growth rate. Take a look at this graph of \(f(n)= n^2\) vs. \(g(n) = 3n+4\).

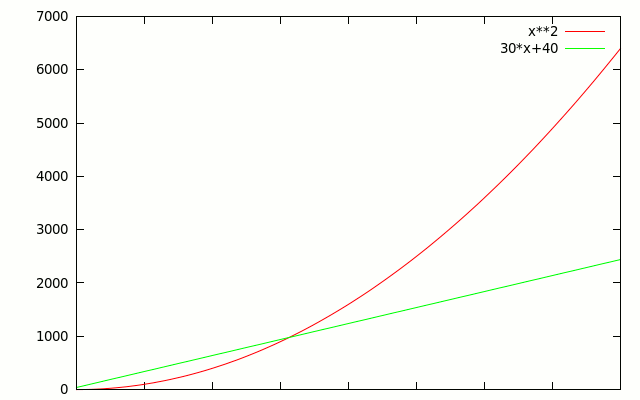

What happens if we change the constants in \(g(n)\)? The line moves, but it doesn't change shape, so there's always some point at which f(n) passes it. Here for example is \(f(n)= n^2\) vs. \(g(n) = 30n+40\).

As soon as we start caring about really big n, it doesn't matter what the constant coefficients are, \(f(x)\) will always find a point at which it will dominate \(g(x)\) everywhere to the right. In the following table, \(f(n)\) will dominate \(g(n)\) for some large enough \(n\):

Big-O Notation

We talk about the runtime of algorithms by categorizing them into sets of functions, based entirely on their largest growth rate.

The mathematical definition: if two functions \(f(n)\) and \(f'(n)\) are both eventually dominated by the same function \(c\cdot g(n)\), where \(c\) is any positive coefficient, then \(f(n)\) and \(f'(n)\) are both in the same set. We call this set \(O(g(n))\) (pronounced "Big-Oh of g(n)"). Then we can write \(f(n) \in O(g(n))\) and \(f'(n) \in O(g(n))\).

Since the constant coefficients don't matter we say that \(g(n)\) eventually dominates \(f(n)\) if there is ANY constant we can multiply by \(g(n)\) so that it eventually dominates \(f(n)\). \(f(n)=5n+3\) is obviously \(O(n^2)\). It is also \(O(n)\), since \(f(n)\) is dominated by \(10n\), and 10 is a constant.

The formal definition: For a function \(f(n)\), if there exists a \(c\) and \(n_0\) such that \(c \gt 0\) and \(n_0 \geq 1\), and for all \(n \ge n_0, f(n) \leq cg(n)\), then \(f(n) \in O(g(n))\).

While \(f(n)=5n+10 \in O(n^2)\), it is also \(O(5n)\). \(O(5n)\) is preferred over \(O(n^2)\) because it is closer to \(f(n)\). \(f(n)\) is ALSO \(\in O(n)\). \(O(n)\) is preferred over \(O(5n)\) because the constant coefficients don't matter, so we leave them off.

2 Big-O Applications

Now we know Big-O

We're a week in, and you've already learned the most important part of this class: Big-O notation. You absolutely have to understand this to be a computer scientist. Here are some examples of Big-O notation appearing in academic papers by your faculty:

"Since the program doubles at each step, the size of \(\Psi_n\) is \(O(2^n)\)."

-- Chris Brown and James Davenport, "The Complexity of Quantifier Elimination and Cylindrical Algebraic Decomposition."

"The initialization in Steps 2–5 and the additions in Steps 10 and 12 all have cost bounded by \(O(n/r)\), and hence do not dominate the complexity."

-- Dan Roche, "Chunky and Equal-Spaced Polynomial Multiplication"

"Unfortunately, the expressiveness of the model must be weighed against the \(O(n^3)\) cost of inverting the kernel matrix."

-- Gavin Taylor, "Feature Selection for Value Function Approximation."

"Our P-Ring router, called Hierarchical Ring (HR), is highly fault tolerant, and a rounder of order \(d\) provides guaranteed \(O(log_d P + m)\) range search performance in a stable system with P peers, where m is the number of peers with items in the query range."

-- Adina Crainiceanu, et al., "Load Balancing and Range Queries in P2P Systems Using P-Ring."

Other Big-Stuff

Through this entire section, we are still talking about worst-case run times.

Remember, if \(f(n)\in O(g(n))\), then we can come up with a \(c\) such that for all \(n \ge n_0\), \(f(n)\leq c g(n)\).

If we replace the second part of that definition with a greater-than like \(f(n) \ge c g(n)\), then \(f(n)\in \Omega (g(n))\).

As an example, we know the function \(3n+1 \in O(n)\), because we could set \(c=4\), and \(4n\) dominates \(3n+1\) for all \(n\ge 1\). However, additionally, \(3n+1 \in\Omega(n)\), because we can set \(c=3\), and \(3n\) is dominated by \(3n+1\) for all values of \(n\).

When \(f(n)\in O(g(n))\), and \(f(n)\in\Omega(g(n))\), then we can say \(f(n)\in\Theta(g(n))\). Obviously, big-Theta is most precise. In this class, we'll mostly talk big-O. If you take algorithms, that will mostly be big-Theta.

Our Main Big-O Buckets and Terminology

Big-O is extremely useful because it allows us to put algorithms into "buckets," where everything in that bucket requires about the same amount of work. It's important that we use the correct terminology for these buckets, so we know what we're talking about. In increasing order...

• Constant time. The run time of these algorithms does not depend on the input size at all. \(O(1)\).
• Logarithmic time. \(O(\log(n))\). Remember, changing the base of the log is exactly the same as multiplying by a coefficient, so we don't tend to care too much if it's natural logarithm, base-2 logarithm, base-10 logarithm, or whatever.
• Linear time. \(O(n)\).
• n-log-n time. \(O(n \log(n))\).
• Quadratic time. \(O(n^2)\).
• Cubic time. \(O(n^3)\).
• Polynomial time. \(O(n^k)\), for some constant \(k\gt 0\).
• Exponential time. \(O(b^n)\), for some constant \(b \gt 1\). Note this is different than polynomial.

Fuzzily speaking, things that are polynomial time or faster, are called "fast," while things that are exponential, are "slow." There is a class of problems that are believed to be slow called the NP-complete problems. If you succeed in either (a) finding a fast algorithm to compute an NP-complete problem, or (b) prove that no such algorithm exists, congratulations! You've just solved a Millenium Problem, get a million dollars, and are super-famous. If you take the algorithms class, you'll learn how to do that.

The following table compares each of these buckets with each other, for increasing values of \(n\).

To understand just how painful exponential time algorithms are, note that the number of seconds in the age of the universe has about 18 digits, and the number of atoms in the universe is a number with about 81 digits. That last number in the table has 309 digits. If we could somehow turn every atom in the universe into a little computer, and run all those computers in parallel from the beginning of time, an algorithm that takes \(2^n\) steps would still not complete a problem of size \(n=500\).

3 Big-O of Arrays and Linked Lists

Analyzing Data Structures we already know

We are already quite comfortable with two types of data structures: arrays, and linked lists (we also know array lists, but those require some more complicated analysis). Today we're going to apply our analysis skills to the operations we commonly do with these data structures.

Access

"Access" means getting at data stored in that data structure. For example, getting the third element.

In an array, this is really easy! theArray[3] Does the time this takes depend upon the size of the array? No! So, it's constant time. \(O(1)\).

In a Linked List, this is harder. Now, if we were looking for the first element, or the third element, or the hundredth element, then that does NOT depend upon the size of the list, and that would be \(O(1)\). However, remember that we are interested in worst case, and our adversary gets to choose which element we want. So, of course, he would choose the last one. This requires that we cycle through every link in the list, making it \(O(n)\).

Adding an Element to the Front or Back

In an array, this is hard! Because we now have an additional element to store, we have to make our array bigger, requiring us to build a new array of size n+1, move every element into it, and add the new one. That "move every element into it," will take \(O(n)\) time.

In a linked list, this is really easy! If we have a pointer to the first and last link in the chain, this takes the same amount of time, no matter how long the list is! \(O(1)\).

It's worth noting that removing an element requires a similar process.

Adding an Element to a Sorted List or Array

The scenario: assume the array or list is in sorted order, and we have a new element to add. How long will it take (as always, in the worst case)?

This is a two-step process: (1) find where the element goes, and (2) add the element.

In arrays, we recently saw two ways to do (1); one where we cycled through the entire array looking for the proper location (\(O(n)\), and one where we repeatedly halved the array until we found the spot (this is called binary search, and takes \(O(log(n))\)). Doing step (2) is very similar to what we had to do for adding an element to the front or back, so that step is \(O(n)\). So, in total, this takes us \(O(log(n)) + O(n)\), which is \(O(n)\).

Alternatively, you could skip binary search, and do a sequential search (go from element to element, front to back until you find it), moving elements to the new array as you go. Once you find the location to add your new element, add it to the new array, and continue moving elements. This gives you two loops, each of which move roughly half the array. Again, in total, this gives us \(O(n)\).

In a linked list, doing step (1) is \(O(n)\) (see why?). Adding the element at that point is \(O(1)\). So, in total, \(O(n)\).

In summary, it's \(O(n)\) for either an array or a linked list. But there's a big difference in how this breaks down. For arrays, the \(O(n)\) really comes from the "insertion" part, whereas for linked list the insertion part is easy and the \(O(n)\) comes from the "search" part. This difference will come into play in some applications later on.

Traversal

Traversal is our word for "visiting every element." It should be clear that for both arrays and linked lists, this is \(O(n)\).

Why did we do this?

The executive summary is as follows:

We'll be doing this all semester, for each of our data structures. As you can see, the choice between arrays and linked lists, comes down to what you're doing with them. Doing lots of access? Use an array. Adding and removing elements often? Use a linked list. This give-and-take is at the center of Data Structures.
